Description

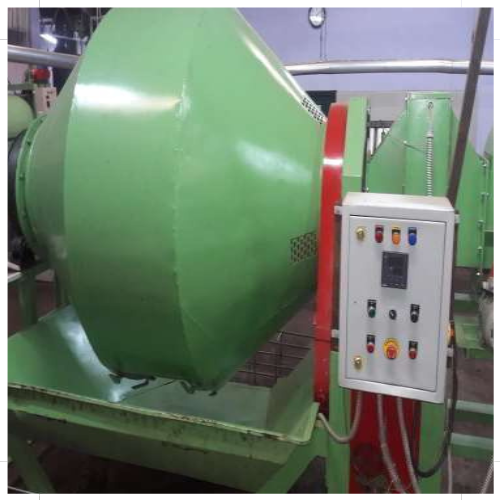

A rotary dryer machine, also known as a rotary drum dryer, is a commonly used industrial equipment for drying various materials. It is particularly effective for drying bulk solids such as grains, minerals, chemicals, fertilizers, and biomass.
Salient Features
- Capacity-250kg
- Input moisture 60%
- Drying temp 80 – 110 deg c.
- Drying time 8 to 4 hrs .
- End moisture 2%.
- Orthodox secondary 20 mints drying.
Technical specification
- Overall dimension dia 1790 X 2700 length.
- Drive rpm 1 to 25 with(vfd).
- Electrical capacity 50 kva.
- Temp up to 40 to 150 deg.
- Cfm 6500 @ 20 deg c.
- 3hp motor with (vfd).
- Main frame 100 x 50 ismc .
- Inner shell made out of ss 304 1.6mm
sheet.
- Outer shell made out of 1.6mm ms sheet.
- Drive assembly with sprocket drive with
guide rollers.
- 1.5hp exhaust fan.
