Description
GD Pulverizes is suitable for fine grinding powder. GD Mills which is screen
less technology and are recommended for micro fine pulverizing of soft to
medium hard , fibrous and slightly moist materials. Mill is uneconomical where
frequent change over of product is required and material is abrasive. Such
Impact Mills efficiently handle fibrous materials and products having similar
structure. Water circulation jacket is an optional feature, apart from different
styles of grinding elements.

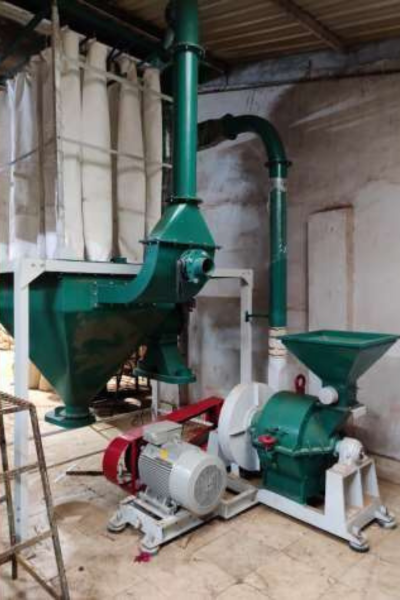

Axially fed material is swept across the periphery of hammers and whizzer type
retainer plate. Grinding action takes place between high speed hammers and
serrated liners. Micro fine powder is discharged through a built-in blower to a
cyclone separator, coupled with a dust filter unit. Mills are supplied with
pneumatic conveying system(optional)
Salient Features
- Provides customized grinding
solution.
- Narrow band particles size powder
distribution.
- Provision to introduce chilled air and
water For Cool Grinding(optional).
- Low Consumption and Maintenance.
- Minimum handling of Materials to avoid
Product Loss.
- Available in Stainless steel ContactParts Stainless GMP Grade.
- Wide Range of Equipment.
- Equipment available for Dustless
Environment.
- Can handle Heat Sensitive and
Hygroscopic Material .
- Experience of Over 50 Materials
grounded and tested.
- Full fledge trial test facility Available.
Product Details
- Minimum Order Quantity - 1 Piece
- Capacity - 50 - 750 Kg/hr
- Automation Grade - Fully Automatic
- Condition - New
- Material - Stainless Steel/Mild Steel.
Specification
- Mill Category Screen Less.
- Model Type GD – 15 ,GD – 25.
- Motor Horse Power(H.P.) 20 – 30 - 40 – 60.
- Capacity (Kg/hr/operation) 50 – 750.
- Max. permissible feed size(mm) 10 - 15.
- Fineness range 150 to 400 mesh BSS Finer.
- Abrasiveness Hardness handled Medium Up to 3 on Moh's Scale.
